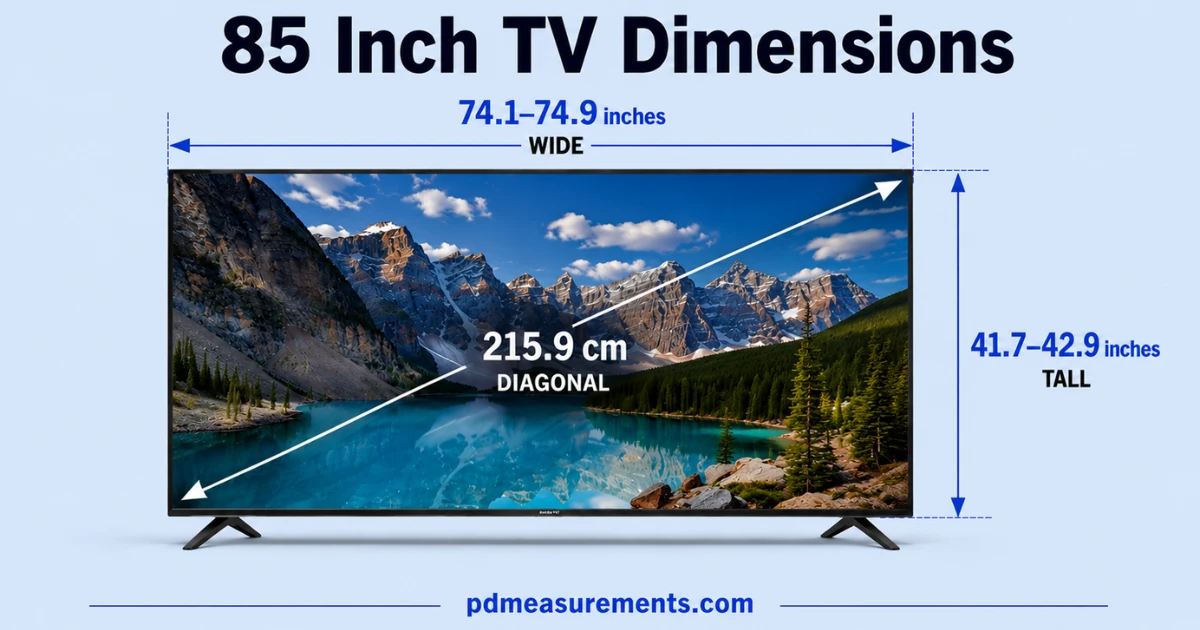

An 85-inch TV has a screen size of about 74.1–74.9 inches wide × 41.7–42.9 inches tall, with a 215.9 cm diagonal.
What Are the Actual Dimensions of an 85 Inch TV
An 85 inch TV measures its screen diagonal, not the width. That single number causes most of the confusion when buyers plan their space.
85 Inch TV Screen Size
The screen diagonal on an 85 inch TV is 215.9 cm. The screen width runs about 74.1 to 74.9 inches, while the screen height sits near 41.7 to 42.9 inches.
Best Buy customer measurements confirm this: one verified buyer of the Samsung QN90B listed the panel at 74.9″ wide by 42.9″ tall, without the stand.
85 Inch TV Dimensions With Stand vs Without Stand
Adding the stand or pedestal base raises total height slightly. One Best Buy reviewer noted the same TV measures 43 x 75 inches taller once the base is attached.
Stand height varies by brand and model. Always check the VESA mount spec sheet before buying furniture.

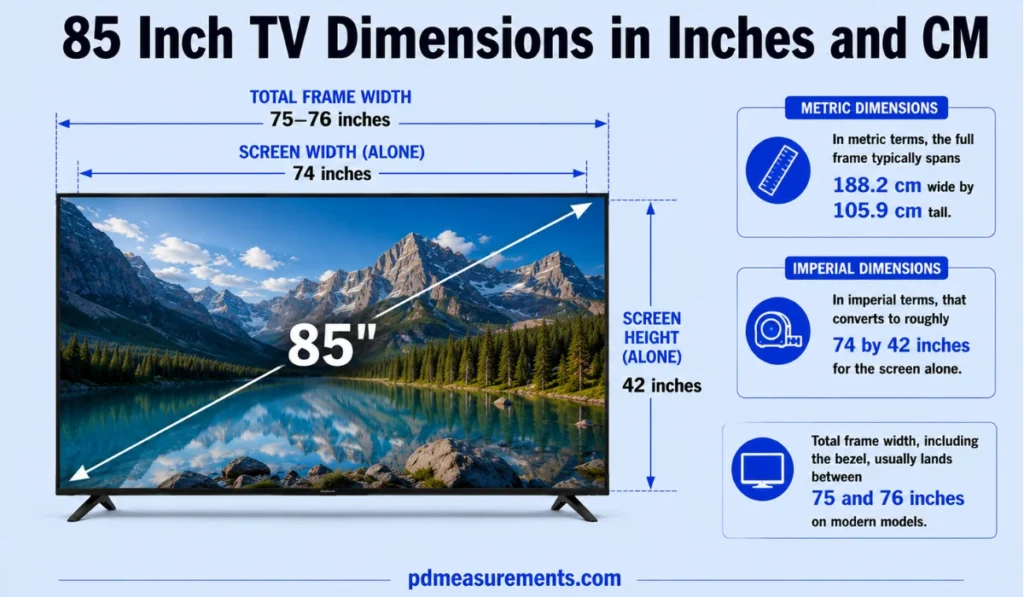

85 Inch TV Dimensions in Inches and CM
In metric terms, the full frame typically spans 188.2 cm wide by 105.9 cm tall. In imperial terms, that converts to roughly 74 by 42 inches for the screen alone.
Total frame width, including the bezel, usually lands between 75 and 76 inches on modern models.
What Is the Width of an 85 Inch TV
The width of an 85 inch TV depends on whether you’re measuring the screen or the full frame. This distinction matters most when planning wall space.
Screen-Only Width vs Full Frame Width
The active display area alone measures about 74.1 inches wide. This number stays consistent across brands since it reflects only the picture itself.
Once you add the outer casing, total width increases to 74.5–76 inches on most Samsung, Sony, and TCL models.
How Bezel Size Affects Total Width
Older TVs or budget models with thicker bezels can reach up to 78 inches wide. Slim-bezel designs stay closer to the screen-only measurement.
Always confirm the exact spec sheet, since bezel thickness varies even within the same brand’s lineup.
More Post: Double Bed Dimensions: Size, Comparisons, Room Space & Frame Sizes

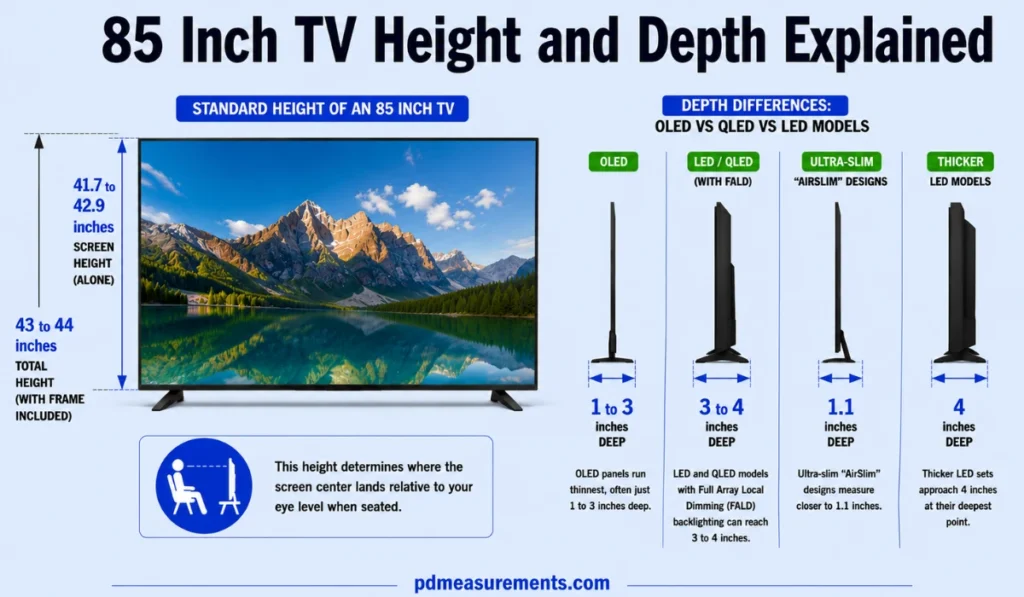

85 Inch TV Height and Depth Explained
Height and depth matter just as much as width when planning a mount or stand. Skipping this step is a common mistake.
Standard Height of an 85 Inch TV
Screen height alone measures 41.7 to 42.9 inches. With the frame included, expect 43 to 44 inches total.
This height determines where the screen center lands relative to your eye level when seated.
Depth Differences: OLED vs QLED vs LED Models
OLED panels run thinnest, often just 1 to 3 inches deep. LED and QLED models with Full Array Local Dimming (FALD) backlighting can reach 3 to 4 inches.
Ultra-slim “AirSlim” designs measure closer to 1.1 inches, while thicker LED sets approach 4 inches at their deepest point.

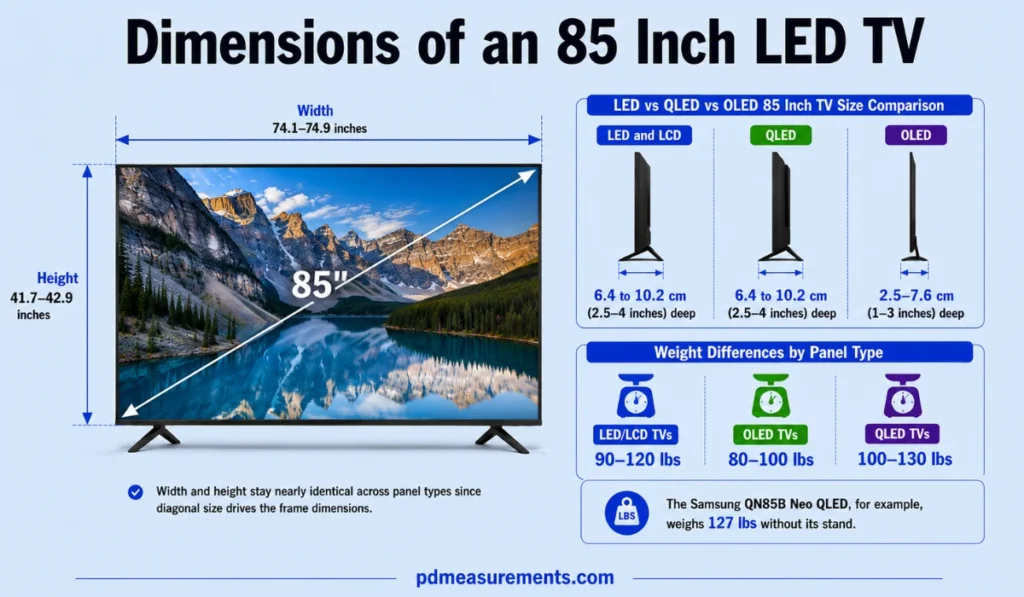

Dimensions of an 85 Inch LED TV
LED technology remains the most common panel type at this size, but dimensions still shift by model and manufacturer.
LED vs QLED vs OLED 85 Inch TV Size Comparison
LED and LCD TVs typically measure 6.4 to 10.2 cm (2.5–4 inches) deep. OLED sets stay slimmer, around 2.5–7.6 cm (1–3 inches).
Width and height stay nearly identical across panel types since diagonal size drives the frame dimensions.
Weight Differences by Panel Type
Panel type changes weight significantly. LED/LCD TVs weigh 90–120 lbs, OLED TVs run 80–100 lbs, and QLED TVs reach 100–130 lbs.
The Samsung QN85B Neo QLED, for example, weighs 127 lbs without its stand.
How Much Wider Is an 85 TV Than a 75
Comparing an 85 inch screen to a 75 inch TV helps buyers decide if the jump in size is worth the extra space.
Width Difference in Inches
A 75 inch TV measures roughly 65.4 inches wide, while an 85 inch model measures 74.1–74.9 inches. That’s a difference of about 9 to 10 inches in screen width alone.
This gap grows once you factor in the frame, since larger TVs often carry slightly thicker bezels.
Room Space Impact When Upsizing From 75 to 85
That extra 9-inch width can push a TV past your available wall or stand space. Measure your wall before assuming the upgrade will fit.
A room built for a 75 inch screen may not comfortably support an 85 inch upgrade without rearranging furniture.

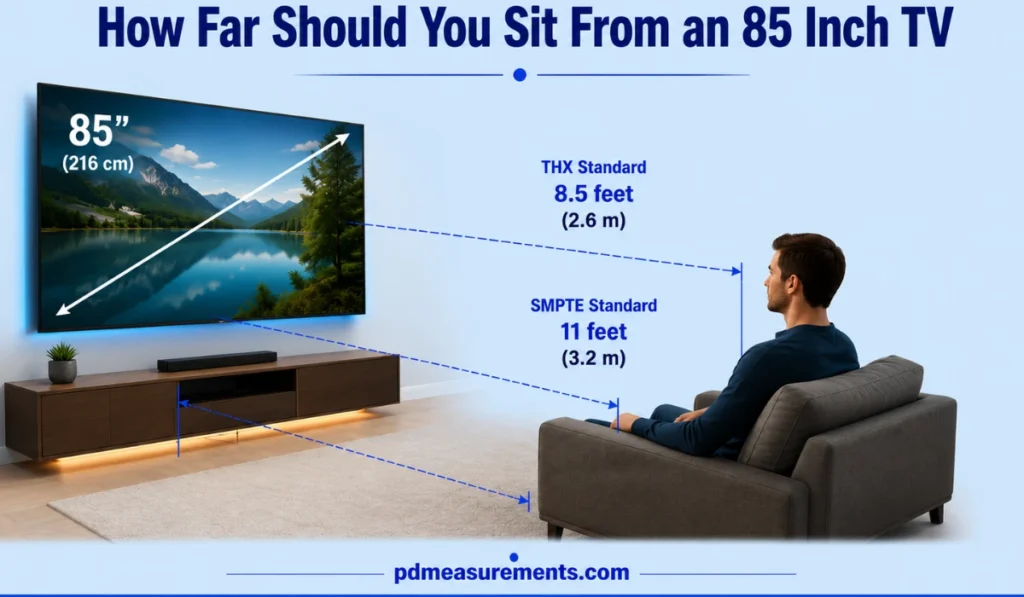

How Far Should You Sit From an 85 Inch TV
Viewing distance determines comfort as much as picture quality. Sitting too close causes eye strain; sitting too far wastes the screen’s impact.
THX and SMPTE Viewing Distance Standards
The THX standard recommends a minimum distance of about 8.5 feet (2.6 m) for cinema-style immersion. The SMPTE standard for general daily viewing suggests roughly 11 feet (3.2 m).
These two benchmarks give buyers a practical range rather than one fixed number.
Ideal Viewing Distance for 4K and 8K Resolution
With 4K resolution, you can sit closer, around 7 to 8 feet, without noticing individual pixels. 8K resolution allows even closer seating while keeping the image sharp.
Full HD content needs more distance, typically around 14 feet, to avoid seeing pixel structure.
Recommended Room Size for an 85 Inch TV
An 85 inch TV suits rooms starting at 35 square meters, with 50 square meters considered ideal. Ceiling height should measure at least 2.7 meters for proper proportion.
Smaller rooms can still work, but viewing distance becomes the limiting factor.
85 Inch TV Mounting and Wall Space Requirements
Wall-mounting an 85 inch TV takes more planning than smaller sizes, mainly due to weight and clearance needs.
Wall Clearance Needed for Installation
Experts recommend roughly 90 inches of clear wall space total, with at least 4 inches of clearance on each side for ventilation. Heat buildup shortens a TV’s lifespan without proper airflow.
Cable routing also needs room, since HDMI and power cords have a minimum bend radius that tight corners can damage.
VESA Mount Compatibility and Weight Limits
Most 85 inch TVs are VESA mount compatible, but their weight demands a full-motion mount rated for at least 150 lbs. Wall studs must be located and reinforced to support the combined load.
Two or three people are recommended for safe lifting and mounting at this size.
TV Stand and Furniture Requirements for an 85 Inch TV
Furniture compatibility trips up more buyers than wall space does. Modern 85 inch TVs place unusual demands on stands.
Minimum TV Stand Width
Most current models use wide “blade” feet instead of a center pedestal. A 60-inch console is too narrow, and even a 70-inch stand can leave the feet unsupported.
Designers often follow the Triangle Rule, where furniture appears wider than the TV. A stand around 83 inches wide creates better visual balance.
Foot Spacing by Brand
Foot spacing isn’t standardized. Sony models often sit around 61 inches apart, while Hisense and LG designs spread from 66 to 70 inches.
Measure your specific model’s foot spacing before buying any stand, since assumptions here often lead to returns.
Frequently Asked Questions About 85 Inch TV Dimensions
What is the width of an 85 inch TV?
The screen alone measures about 74.1 to 74.9 inches wide; the full frame with bezel reaches 75 to 76 inches.
How far should you sit from an 85 inch TV?
Sit between 8.5 feet (THX) and 11 feet (SMPTE) for comfortable viewing, or as close as 7 to 8 feet with 4K content.
What are the actual dimensions of an 85 TV?
The screen measures roughly 74.1″ wide by 42″ tall, with a 215.9 cm diagonal, and the full frame adds slightly more on each side.
What are the disadvantages of the 85 inch TV?
Heavy delivery weight, narrow doorway clearance, high furniture demands, and reduced fit for small rooms are the main drawbacks.
What are the dimensions of an 85-inch LED TV?
LED models measure the same screen size as other panel types, roughly 74 by 42 inches, but run 2.5 to 4 inches deep and weigh 90 to 120 lbs.
How much wider is an 85 TV than a 75?
An 85 inch TV is about 9 to 10 inches wider than a 75 inch TV.
